Digital AC Millivoltmeter

Digital AC Millivoltmeter

Get a Price/Quote

Product Details:

  • Features Portable, High Accuracy, Easy Operation
  • Automation Grade Manual
  • Response Time <2 seconds
  • Resolution 1 mV
  • Measuring Range 0 to 2000 mV (AC)
  • Interface Type BNC input
  • Application Measurement of AC voltage in millivolt range
  • Click to view more
Request To Call Back Send Inquiry
X

Digital AC Millivoltmeter Price And Quantity

  • 1 Unit
  • Fuse protected input
  • Factory calibrated, external calibration available
  • Banana sockets
  • 0.5 inch digit
  • > 1 M
  • Less than 5 minutes
  • 220 x 210 x 75 mm

Digital AC Millivoltmeter Product Specifications

  • Portable, High Accuracy, Easy Operation
  • Manual
  • <2 seconds
  • Approx. 2 kg
  • BNC input
  • 0 to 2000 mV (AC)
  • 1 mV
  • Measurement of AC voltage in millivolt range
  • Manual
  • 1% of reading
  • 0 to 80% (non-condensing)
  • 50Hz
  • Digital LED display
  • 0C to 50C
  • Electrical Laboratory, Testing
  • 230V AC, 50Hz
  • Digital AC Millivoltmeter
  • Tabletop
  • 230V AC
  • Fuse protected input
  • Factory calibrated, external calibration available
  • Banana sockets
  • 0.5 inch digit
  • > 1 M
  • Less than 5 minutes
  • 220 x 210 x 75 mm

Digital AC Millivoltmeter Trade Information

  • 5 Unit Per Week
  • 4-5 Days
  • Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
  • All India

Product Description

Specifications :
Voltage Range : 0.1mV to 300 V AC. Covered in 12 ranges with full scale deflection of 1, 3, 10, 30, 100, 300 millivolts and 1, 3, 10, 30, 100, 300 volts.
Decibel Range : -60 to + 50 dB in 10dB steps.
Freq. Range : 5 Hz to 1MHz
Measurement : 1 mV to 30 mV Ranges
Accuracy : + 3% of FSD from 30 Hz to1 MHz. 100 mV to 3 V Ranges + 5% of FSD 30 Hz to 500 KHz + 1% of FSD 20 Hz to 1 MHz. 10 V & above Ranges + 5% of FSD upto 100 KHz

Precision Measurement for Electrical Labs

Offering an accuracy of 1% of the reading, this Digital AC Millivoltmeter is specially crafted for electrical laboratories and critical testing applications requiring high precision. Its resolution of 1 mV and rapid response time under 2 seconds facilitate effective real-time AC voltage measurement across a range of experiments and automation setups.


User-Friendly Design with Enhanced Safety

With a manual control mode, the unit is straightforward to operate, even for first-time users. Safety features like fuse-protected input and sturdy banana socket connectors ensure reliable operation and circuit protection. Its compact, portable form factor and tabletop design make it convenient for both field and laboratory use.

FAQs of Digital AC Millivoltmeter:


Q: How do I connect the Digital AC Millivoltmeter for measurements?

A: To measure AC voltage, connect your input signal to the banana socket or BNC input connectors on the front panel. Ensure the leads are securely attached and the device is powered on before taking readings from the digital LED display.

Q: What is the warm-up time and why is it necessary?

A: The warm-up time for this millivoltmeter is less than 5 minutes. Allowing the instrument to reach thermal stability prior to use ensures accuracy, as electronic components can drift slightly when transitioning from storage to operational temperatures.

Q: Where is this millivoltmeter best used?

A: This equipment is ideal for use in electrical laboratories, academic institutions, and workshop environments where precise AC millivolt measurement is required. Its tabletop and portable design enhances flexibility for location changes.

Q: What calibration options are available for this instrument?

A: The device comes factory calibrated for immediate use. However, external calibration is also available, allowing users to maintain high measurement accuracy over time and adapt to specific standards if required.

Q: How does the millivoltmeter ensure the safety of my equipment under test?

A: The instrument is equipped with a fuse-protected input circuit, which helps safeguard both the meter and your test equipment from accidental overload or short circuits during operation.

Q: What environmental conditions can the Digital AC Millivoltmeter operate in?

A: This meter performs reliably in ambient temperatures ranging from 0C to 50C and at humidity levels between 0 to 80% (non-condensing), making it suitable for diverse laboratory and industrial settings.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Testing Measuring Instruments' category

Ohms Meter Series and Shunt Type
Send Inquiry
Digital Flux Meter / Gauss Meter
Send Inquiry
Analog / linear IC Tester
Send Inquiry

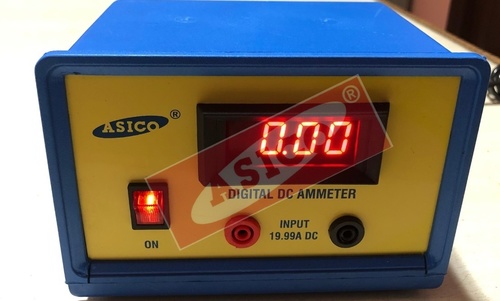

Digital DC Ammeter LED Type Mains operated
