Digital AC Milli Voltmeter

Get a Price/Quote

Product Details:

Equipment Type Digital AC Milli Voltmeter
Power Supply 230V AC, 50Hz
Interface Type Banana Socket Input
Accuracy 1% of reading
Humidity Up to 80% RH
Frequency 50Hz
Measuring Range 1 mV to 200V AC
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Digital AC Milli Voltmeter Price And Quantity

Minimum Order Quantity 1 Unit

Accessories Included Mains Cord, Test Leads, User Manual
Input Impedance >1 M
Safety Standard IEC 61010-1
Display Colour Red
Case Material ABS Plastic Housing
Calibration Factory Calibrated
Input Signal Frequency Range 20Hz 1MHz
Operating Environment Laboratory, Indoor
Fuse Protection Yes

Digital AC Milli Voltmeter Product Specifications

Frequency 50Hz
Measuring Range 1 mV to 200V AC
Display Type 5 Digit Digital LED Display
Mounting Type Bench-top
Features Portable, Overload Protection, Easy Operation
Machine Weight Approx. 1.5 kg
Temperature 0C to 50C
Usage Measurement of AC milli-voltage
Automation Grade Manual
Power Supply 230V AC, 50Hz
Test Range 1 mV to 200V AC
Resolution 0.1 mV
Control Mode Manual
Equipment Type Digital AC Milli Voltmeter
Operating Voltage 230V AC
Humidity Up to 80% RH
Response Time <1s
Interface Type Banana Socket Input
Accuracy 1% of reading
Application Electronics Laboratory, Testing & Measurement

Accessories Included Mains Cord, Test Leads, User Manual
Input Impedance >1 M
Safety Standard IEC 61010-1
Display Colour Red
Case Material ABS Plastic Housing
Calibration Factory Calibrated
Input Signal Frequency Range 20Hz 1MHz
Operating Environment Laboratory, Indoor
Fuse Protection Yes

Digital AC Milli Voltmeter Trade Information

Supply Ability 5 Unit Per Week
Delivery Time 4-5 Days
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
Main Domestic Market All India

Product Description

Digital AC Milli Voltmeter

Description:-

- The is a precision instrument useful for measurement of AC voltages, covering the entire audio frequency range.
- The instrument responds to the average value of
- Signal and displays the RMS value.
- The instrument is particularly suitable for testing of audio equipment and is also an essential test instrument for laboratories.
- Ability: Line voltage variation upto 10% do not affected accuracy of reading
- Pre - Deflection: Less than 50uV in1mVrange with input shorted
- Circuit: Fully transistorized with over load protected input circuit
- Input Impedance: 1 M.Ohm shunted by 15pF on 100mV range &above

Specification:-

DISPLAY	3 Digit LED panel meter.
VOLTAGE RANGE	199.9mV , 1.999V, 19.99V V AC.
ACCURACY OF VOLTAGE	0.5% + 1 Digit (at 1 KHz)
FREQUENCY RESPONSE	10Hz. to 100KHz.
FLATNESS OF RESPONSE	Within + 1dB
INPUT IMPEDANCE	1 Mega Ohm
POWER REQUIRED	220 V

Precise Measurement for Laboratory Applications

Engineered for use in electronics laboratories, this Digital AC Milli Voltmeter offers high accuracy and sensitivity, allowing users to measure AC milli-voltage across a broad range. Its factory-calibrated design provides confidence in readings, while the clear digital display facilitates quick assessments.

Robust Safety and Durability Features

Meeting IEC 61010-1 safety standards, the device is protected against overload and features fuse protection for added reliability. Its sturdy ABS plastic housing ensures durability in demanding lab settings. The equipments manual control mode supports comprehensive test procedures and troubleshooting.

Ease of Use and Complete Accessory Kit

The Digital AC Milli Voltmeter comes equipped with mains cord, test leads, and user manual, enabling straightforward setup and operation. The banana socket input design simplifies connections, making it ideal for both novice and experienced technicians.

FAQs of Digital AC Milli Voltmeter:

Q: How do I operate and calibrate the Digital AC Milli Voltmeter?

A: Operating the Digital AC Milli Voltmeter is straightforward due to its manual control mode. Calibration is performed at the factory, ensuring accuracy upon delivery. For measurements, connect the test leads and select the appropriate range using the front panel. Refer to the user manual for detailed instructions.

Q: What is the main benefit of the high input impedance feature?

A: With input impedance exceeding 1 M, the meter minimizes the loading effect on the circuit under test, ensuring more accurate voltage measurements, especially in sensitive electronics laboratory environments.

Q: When should I use the fuse protection provided in the device?

A: Fuse protection activates during overload conditions to safeguard both the instrument and the operator. If the device ceases to function after extreme input levels, inspect and replace the fuse as outlined in the user manual.

Q: Where is the Digital AC Milli Voltmeter ideally used?

A: This equipment is best suited for electronics laboratories, testing and measurement facilities, and other indoor environments where precise AC milli-voltage readings are required.

Q: What accessories and features are included with the product?

A: Each unit includes a mains cord, test leads, and a user manual, along with features such as a bench-top mounting design, banana socket input interface, overload protection, and a bright red LED 5-digit display.

Q: How does the safety standard IEC 61010-1 benefit users?

A: Compliance with IEC 61010-1 ensures that the meter adheres to international standards for electrical safety, reducing risk of electrical hazards during laboratory usage.

Q: What is the process for measuring AC milli-voltage with this device?

A: Connect your test leads to the banana socket inputs, select the desired range (1 mV to 200V AC), power on the device, and observe the measurement on the digital display. The process is quick, with a response time of less than 1 second.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Testing Measuring Instruments' category

DSO 100 MHz Minimum Order Quantity : 1 Usage : Laboratory, Industrial, Educational Mounting Type : Bench Top Features : Autoset, Cursors, Math Functions, Storage, Pass/Fail Test Application : Signal Analysis, Electronics Design, Troubleshooting Display Type : 7 TFT Color LCD Power Supply : 100240 V AC, 50/60 Hz Operating Voltage : 100240 V AC Resolution : 8 bits (vertical) Machine Weight : Approx. 2.5 kg Temperature : 0C to 40C (operation) Control Mode : Manual and Auto Accuracy : 3% (vertical) Interface Type : USB Host/Device, RS232 Humidity : Up to 80% (Noncondensing) Measuring Range : DC to 100 MHz Response Time : <10 ns Rise Time Automation Grade : Manual / Semi Automatic Frequency : 100 MHz Port Size : BNC Input: 2 Channels Test Range : Vertical: 2 mV/div to 10 V/div Test Speed : Realtime acquisition up to 1 GSa/s

Send Inquiry

Digital AC Millivoltmeter Minimum Order Quantity : 1 Usage : Electrical Laboratory, Testing Mounting Type : Tabletop Features : Portable, High Accuracy, Easy Operation Application : Measurement of AC voltage in millivolt range Display Type : Digital LED display Power Supply : 230V AC, 50Hz Operating Voltage : 230V AC Resolution : 1 mV Machine Weight : Approx. 2 kg Temperature : 0C to 50C Control Mode : Manual Accuracy : 1% of reading Interface Type : BNC input Humidity : 0 to 80% (noncondensing) Measuring Range : 0 to 2000 mV (AC) Response Time : <2 seconds Automation Grade : Manual Frequency : 50Hz Equipment Type : Digital AC Millivoltmeter

Send Inquiry

DSO 60 MHz Minimum Order Quantity : 1 Usage : Electronic Testing & Measurement Mounting Type : Benchtop Features : Auto Setup, Cursor Measurement, Math Functions, USB Storage Application : Oscilloscope Measurement, Signal Testing Display Type : 7 inch TFT LCD Power Supply : AC 220V 10%, 50Hz Operating Voltage : AC 220V Resolution : 8 bits Machine Weight : 4 kg Temperature : 0C ~ 40C Control Mode : Digital Accuracy : 3% (typical) Interface Type : USB, LAN Humidity : 85% RH Measuring Range : Vertical: 2 mV/div 10 V/div Automation Grade : Automatic Frequency : 60 MHz bandwidth Equipment Type : Digital Storage Oscilloscope (DSO)

Send Inquiry

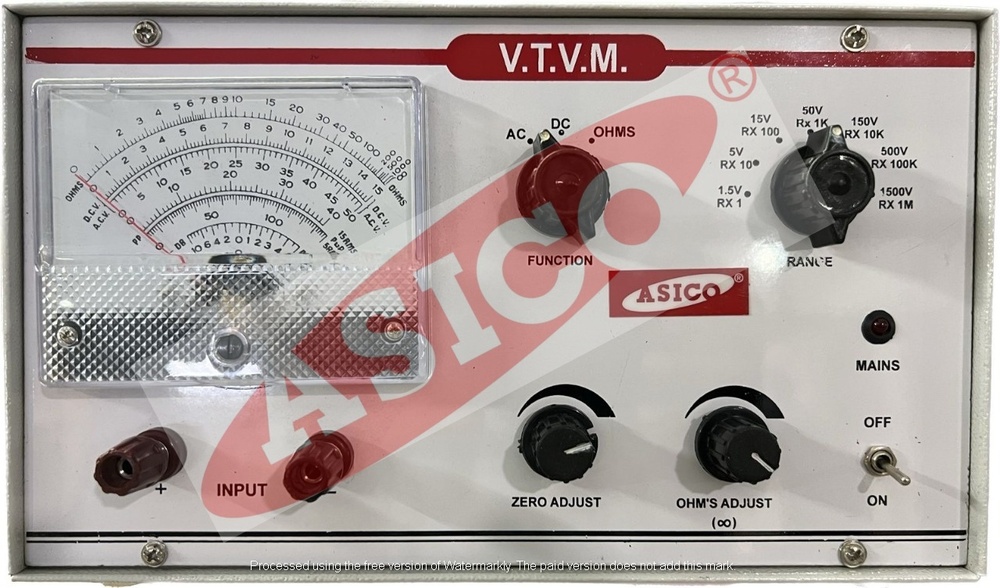

Vaccum Tube Volt Ohm Meter (VTVM) Usage : Laboratory and workshop applications for electrical measurements Mounting Type : Benchtop Features : High input impedance measures DC and AC voltage resistance Application : Measurement of voltage resistance and current Display Type : Analog dial with needle indicator Power Supply : AC powered Operating Voltage : 120240V AC Resolution : Analog scale resolution varies based on range selected Machine Weight : Approximately 2 kg Temperature : Operating temperature: 0C 40C Control Mode : Manual Accuracy : 0.5% of full scale Interface Type : Analog knobs and switches Humidity : Operates in relative humidity < 85% Measuring Range : DC voltage: 0.1V 500V AC voltage: 1V 500V resistance: 1 500M Response Time : Quick response with analog needle movement Port Size : Standard probe inputs Test Range : Voltage current and resistance ranges Test Speed : Dependent on user operation
