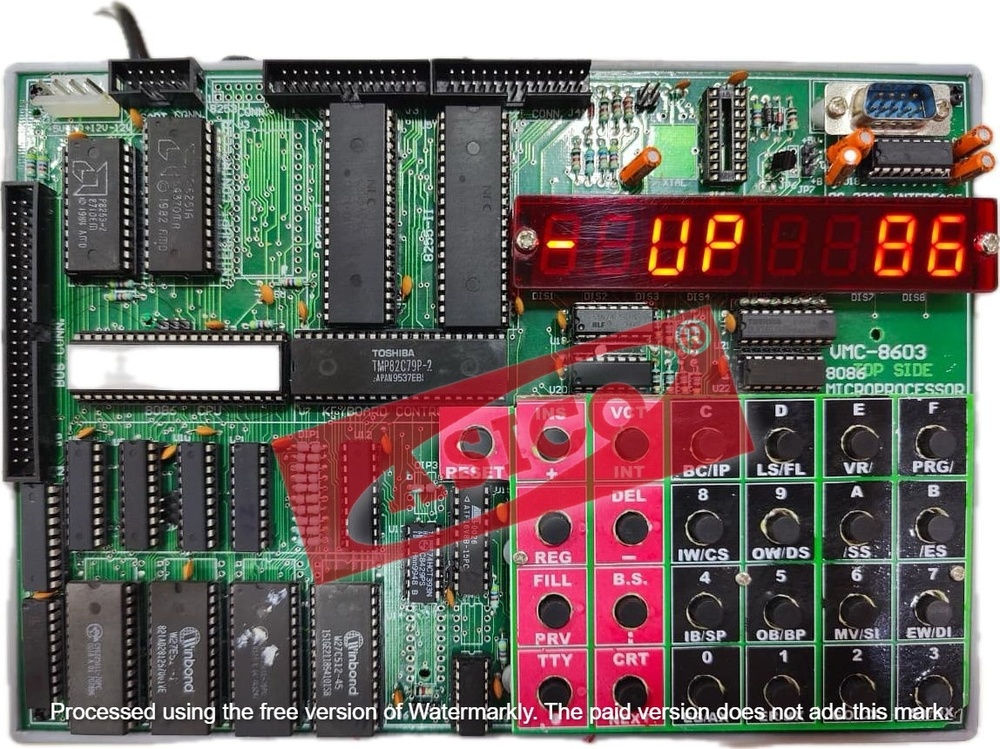

8086 MICROPROCESSOR TRAINING KIT WITH LCD DISPLAY & IN-BUILT POWER SUPPLY

Name: 8086 MICROPROCESSOR TRAINING KIT WITH LCD DISPLAY & IN-BUILT POWER SUPPLY
Brand: AMBALA ELECTRONIC INSTRUMENTS
Price: 8800 INR
Availability: InStock

8800 INR/Piece

Get a Price/Quote

Product Details:

Power In-built regulated power supply
Usage 8086 microprocessor based learning, programming and interfacing practice
Voltage Operating at 230V AC +/-10%, 50Hz
Display 16 x 2 Alphanumeric LCD Display
Product Type Microprocessor Training Kit
Material ABS body with high-grade PCB
Design Desktop user-friendly panel with labeled sections
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

8086 MICROPROCESSOR TRAINING KIT WITH LCD DISPLAY & IN-BUILT POWER SUPPLY Price And Quantity

Price 8800 INR/Piece
Minimum Order Quantity 1 Piece

8086 MICROPROCESSOR TRAINING KIT WITH LCD DISPLAY & IN-BUILT POWER SUPPLY Product Specifications

Power In-built regulated power supply
Material ABS body with high-grade PCB
Accuracy High precision for educational and development purposes
Weight Approx. 2.5 kg
Display 16 x 2 Alphanumeric LCD Display
Illuminant Backlit LCD
Voltage Operating at 230V AC +/-10%, 50Hz
Usage 8086 microprocessor based learning, programming and interfacing practice
Design Desktop user-friendly panel with labeled sections
Charging Time Not applicable (mains powered)
Product Type Microprocessor Training Kit
Dimension (L*W*H) Approx. 370mm x 260mm x 110mm
Power Source Internal regulated SMPS

Reset Circuit Push-button reset with indicator
Accessories Supplied with patch cords, power cord and user's manual
Memory 32 KB EPROM and 32 KB RAM
Serial Interface RS232C/TTL port provided
Indicator Power and status LEDs
Protection Fuse protected power input
Input/Output Ports 8255 PPI, 8253 Timer, 8279 Keyboard/Display Controller on board
Microprocessor Chip Intel 8086 or compatible, 16-bit architecture
System Clock 5 MHz Crystal oscillator
Software Support Monitor program in EPROM, with assembler/disassembler
Keypad Hexadecimal key matrix with function keys
Expansion Onboard connectors for add-on cards/interfacing modules

8086 MICROPROCESSOR TRAINING KIT WITH LCD DISPLAY & IN-BUILT POWER SUPPLY Trade Information

Delivery Time 5-7 Days
Main Export Market(s) Asia, Central America, South America, Middle East, Africa
Main Domestic Market All India

Product Description

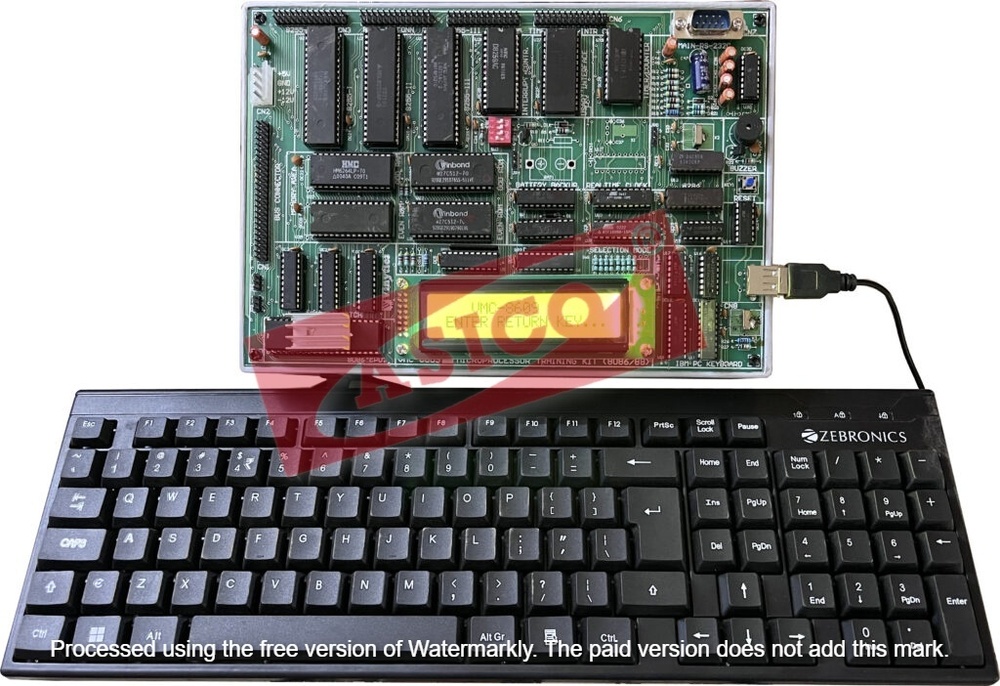

8086 MICROPROCESSOR TRAINING KIT WITH

LCD DISPLAY & IN-BUILT POWER SUPPLY

Based on 8086/8088 Microprocessor

Onboard assembler & disassembler.

16K Bytes of EPROM Loaded with monitor expandable to

256K Bytes using 27256 with commands like Assemble,

Display or Modify Data, Unassemble, Trace, Go.

16K bytes of CMOS RAM expandable to 128K Bytes using

6264/62256.

72 I/O lines using three nos. of 8255.

8 different level interrupt through 8259.

Three 16 bit Timer/Counter through 8253.

104/105Keys IBM PC Compatible ASCII Keyboard

20x2 Liquid Crystal Display.

RS-232C Port using 8251.

All address, data and control signals (TTL Compatible)

available at edge connector as per Multi Bus. The kit also

has its own Resident Bus.

Enclosed in an attractive ABS Plastic cabinet with cover

In-built Power Supply

User's Manual.

Advanced Learning Platform

This training kit is perfectly suited for students and professionals aiming to master 8086 microprocessor architecture and interfacing. With ample EPROM and RAM, built-in support components, and well-labeled sections, it provides hands-on experience in system operation, programming, and testing.

Robust, User-Friendly Design

Designed with a durable ABS body, high-grade PCB, and a desktop-friendly layout, the kit emphasizes ease of use and longevity. Clear status indicators, a push-button reset, and a protective fuse ensure safe operation. The backlit LCD provides excellent display visibility for both education and demonstrations.

Complete Educational Solution

Supplied with patch cords, power cord, and a detailed user's manual, the kit offers everything necessary for immediate classroom or laboratory use. The onboard assembler/disassembler in EPROM assists learners in writing and analyzing assembly code directly.

FAQ's of 8086 MICROPROCESSOR TRAINING KIT WITH LCD DISPLAY & IN-BUILT POWER SUPPLY:

Q: How can students use the 8086 Microprocessor Training Kit for programming practice?

A: Students can write and test assembly-language programs directly using the hex keypad and observe results on the 16 x 2 alphanumeric LCD display. The monitor program in EPROM, along with the onboard assembler/disassembler, facilitates easy program entry, execution, and debugging.

Q: What makes this training kit suitable for interfacing experiments?

A: The kit features onboard connectors for add-on cards, 8255 Programmable Peripheral Interface, 8253 Timer, and 8279 Keyboard/Display Controller, making it easy to connect and experiment with various peripherals and modules for comprehensive interfacing practice.

Q: Where can this training kit be used effectively?

A: It is ideal for use in engineering colleges, polytechnics, technical training institutes, and R&D labs. The robust build and educational features make it suitable for both classroom and lab environments.

Q: When should I use the reset button, and what does the indicator show?

A: Use the push-button reset whenever you need to restart the system or clear program errors. The reset indicator illuminates to signal a successful reset, ensuring you're working with a known state.

Q: What process is involved in expanding this kit's functionality?

A: To expand capabilities, users can attach additional interfacing cards through the onboard connectors. This process allows integration of further modules to explore advanced applications and custom interfacing solutions.

Q: What are the main benefits of the built-in regulated SMPS power supply?

A: The internal SMPS provides stable, regulated power, ensuring consistent performance and protection for the microprocessor and peripheral components. This lets users operate the device safely on standard 230V AC mains without the need for external adapters.
