Study of Voltage Regulation using IC LM 317

Get a Price/Quote

Product Details:

Display Analog/ Digital voltmeter and ammeter
Voltage Input: 12V-24V DC; Output: adjustable 1.25V to 37V DC
Power AC Mains 230V, 50Hz
Usage Educational/Training Equipment for Electronics Labs, Study of voltage regulation
Product Type Voltage Regulation Trainer Kit
Material ABS Plastic panel, MS enclosure
Design Panel Mounted, Open Wiring for Experimentation
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Study of Voltage Regulation using IC LM 317 Price And Quantity

Minimum Order Quantity 1 Unit

Heat Sink Provided for LM317
Test Points Multiple test points for student experiments
Ripple Rejection 65 dB (typical)
Load Regulation Typically 0.1%/V
Overload Protection Yes
Output Current up to 1.5A
Application For technical education & practical demonstration of voltage regulation using LM317
Fuse Protection Inbuilt
Package Includes Trainer Board, Instruction Manual
Short Circuit Protection Included
IC Type LM317 Adjustable Voltage Regulator

Study of Voltage Regulation using IC LM 317 Product Specifications

Usage Educational/Training Equipment for Electronics Labs, Study of voltage regulation
Dimension (L*W*H) 300 mm x 200 mm x 150 mm (approx)
Power Source External AC Mains Supply
Accuracy 1% output voltage regulation
Material ABS Plastic panel, MS enclosure
Voltage Input: 12V-24V DC; Output: adjustable 1.25V to 37V DC
Power AC Mains 230V, 50Hz
Product Type Voltage Regulation Trainer Kit
Weight Approx 1.5 kg
Display Analog/ Digital voltmeter and ammeter
Design Panel Mounted, Open Wiring for Experimentation

Heat Sink Provided for LM317
Test Points Multiple test points for student experiments
Ripple Rejection 65 dB (typical)
Load Regulation Typically 0.1%/V
Overload Protection Yes
Output Current up to 1.5A
Application For technical education & practical demonstration of voltage regulation using LM317
Fuse Protection Inbuilt
Package Includes Trainer Board, Instruction Manual
Short Circuit Protection Included
IC Type LM317 Adjustable Voltage Regulator

Study of Voltage Regulation using IC LM 317 Trade Information

Supply Ability 5 Unit Per Week
Delivery Time 4-5 Days
Main Export Market(s) Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia
Main Domestic Market All India

Product Description

Study of Voltage Regulation using IC 317 (AE 257 )

Objective : Study of line and load Regulation in DC Regulated Power Supply using IC 317

Features : Instrument comprises of AC Power Supply, three meters to measure Output Voltage, Output Current & AC Ripples directly, two PN Junction Diodes, Filter, Regulation circuit using IC 317, load Resistances selectable using band switch & all important connections brought out on 4mm Sockets.

Hands-On Learning Experience

This trainer provides a conducive environment for technical students to understand and experiment with voltage regulation concepts. Multiple test points, clear display meters, and open wiring design facilitate in-depth analysis, fostering both practical and theoretical learning in electronics.

Robust Safety and Accuracy

Safety is prioritized with built-in fuse, overload, and short-circuit protection. The LM317 IC ensures 1% output voltage regulation accuracy, complemented by excellent load regulation and ripple rejection, making the kit reliable for repeatable and safe experiments.

Flexible and Durable Design

Constructed with an ABS plastic panel and MS enclosure, this trainer is built for frequent use in academic labs. The adjustable output voltage range, provided heat sink, and intuitive panel layout ensure longevity and ease of operation for both instructors and learners.

FAQs of Study of Voltage Regulation using IC LM 317:

Q: How does the LM317 trainer help in studying voltage regulation?

A: The LM317 trainer allows students to adjust and measure output voltage under various loads using test points and built-in meters. By observing the regulation characteristics, students gain practical insight into how voltage regulators function in real-world circuits.

Q: What are the main features and protections of the LM317 voltage regulator trainer?

A: The system includes short circuit, fuse, and overload protection, a provided heat sink for thermal safety, and ripple rejection of 65 dB. It ensures safe operation during experiments and prevents damage to internal components and connected circuits.

Q: When should I use this trainer in electronics education?

A: This trainer is ideal for laboratory practical sessions, demonstrations on voltage regulation, and hands-on experiments in technical institutes or colleges. It supports syllabus requirements and enhances conceptual understanding in electronics courses.

Q: Where can this LM317 trainer be utilized?

A: It is best used in electronics labs of educational institutions, training centers, and technical colleges throughout India and is also suitable for remote learning setups with practical demonstration requirements.

Q: What is the usual process for conducting voltage regulation experiments using this kit?

A: Students connect the input power, configure the load, select measurement points, and adjust the output voltage. Data from the analog or digital meters are analyzed to assess regulation characteristics under different conditions.

Q: How does the inbuilt display improve the learning experience?

A: The trainers analog or digital voltmeter and ammeter offer real-time reading of circuit parameters, enabling students to instantly observe the effects of adjustments and loads, making the experimental process interactive and educative.

Q: What are the primary benefits of using this trainer board for voltage regulation studies?

A: This trainer promotes experiential learning, offers high accuracy, ensures safety with multiple protective features, and is engineered for durability. It prepares students for real-world applications of voltage regulators in electronic systems.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Analog Lab Training Modules' category

Voltage Doubler and Tripler Circuit Minimum Order Quantity : 1 Product Type : Electronic Circuit Module Usage : Voltage amplification for laboratory, hobbyist, or educational kits Display : No display (LED indicator optional) Weight : 35 grams Design : Discrete component voltage multiplier circuit Accuracy : 2% (typical, depends on component tolerances) Material : FR4 PCB base, copper traces, silicon diodes, electrolytic capacitors Dimension (L*W*H) : 85 mm x 45 mm x 20 mm Detector : Not applicable (passive electrical circuit) Voltage : Doubler: Input x 2, Tripler: Input x 3; e.g., 12V in = 24V (Doubler), 36V (Tripler) DC output Power : Depends on input, typically up to 10W Power Source : External AC or unrectified DC supply Charging Time : Instantaneous upon supply, depends on load and input frequency

Send Inquiry

LDR Characteristics Apparatus Minimum Order Quantity : 1 Product Type : LDR Characteristics Apparatus Usage : Laboratory; Study of LDR Characteristics in Physics/Electronics experiments Display : Analog or Digital (provided with voltmeter and ammeter) Weight : Approx. 2.5 kg Design : Tabletop, Compact design with easy to use terminals and inbuilt light source Accuracy : High, typical measurement error less than 2% of full scale Material : Metallic body with plastic/laminated panel Dimension (L*W*H) : 340 mm x 180 mm x 125 mm Detector : Photoresistor (LDR Light Dependent Resistor) Voltage : 03 V (Variable Power Supply) Power : 230V AC, 50Hz, Single phase supply Power Source : Mains Powered Illuminant : Builtin lamp for controlled light intensity

Send Inquiry

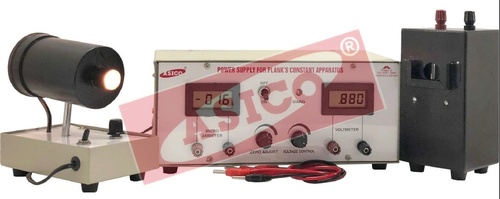

Plancks Constant Apparatus (AE206) Minimum Order Quantity : 1 Product Type : Physics Laboratory Apparatus Usage : Educational Laboratory, Physics Experimentation Display : Digital Weight : 4 kg Design : Portable Tabletop, Robust Construction Accuracy : 2% Material : Metal Body and Acrylic Components Dimension (L*W*H) : 320 mm x 240 mm x 120 mm Detector : Photo Diode Voltage : 12V DC (Internal Electronic Supply) Power : 220V AC, 50 Hz Power Source : Mains Electric Supply Illuminant : LEDs for Wavelength Experimentation
