Digital Trainer to verify Half Adder and Full Adder

Get a Price/Quote

Product Details:

Voltage 230V 10% AC, 50Hz
Display LED based output display
Usage Used for performing and verifying Half Adder and Full Adder operations in digital logic labs
Power 5W (approx)
Product Type Digital Trainer Kit
Material ABS plastic enclosure with phenolic top panel
Design Tabletop, compact, ergonomic design with labelled circuit layout
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Digital Trainer to verify Half Adder and Full Adder Price And Quantity

Minimum Order Quantity 1 Unit

Test Points Multiple logic test points for waveform observation
Operating Temperature Range 0°C to 50°C
Protection Fused protection for over current and accidental short circuits
Output Voltage Levels Standard TTL logic levels
Connector Type Banana socket terminals for external connections
Input Switches Tactile push-to-on switches for logic input entry
Circuitry Discrete IC based implementation of Half Adder and Full Adder circuits
Prototyping Area Breadboard section for custom circuit verification
Accessories Included Instruction manual and connecting patch cords
Applications Ideal for laboratory, educational institutions and training centers

Digital Trainer to verify Half Adder and Full Adder Product Specifications

Design Tabletop, compact, ergonomic design with labelled circuit layout
Dimension (L*W*H) 300 mm x 200 mm x 80 mm (approx)
Voltage 230V 10% AC, 50Hz
Accuracy High logical accuracy suited for digital circuit experiments
Power Source Main AC supply
Product Type Digital Trainer Kit
Detector LED indicators for output visualization
Weight 1.2 kg (approx)
Charging Time Not applicable (operates on main supply)
Material ABS plastic enclosure with phenolic top panel
Power 5W (approx)
Usage Used for performing and verifying Half Adder and Full Adder operations in digital logic labs
Illuminant LEDs
Display LED based output display

Test Points Multiple logic test points for waveform observation
Operating Temperature Range 0°C to 50°C
Protection Fused protection for over current and accidental short circuits
Output Voltage Levels Standard TTL logic levels
Connector Type Banana socket terminals for external connections
Input Switches Tactile push-to-on switches for logic input entry
Circuitry Discrete IC based implementation of Half Adder and Full Adder circuits
Prototyping Area Breadboard section for custom circuit verification
Accessories Included Instruction manual and connecting patch cords
Applications Ideal for laboratory, educational institutions and training centers

Digital Trainer to verify Half Adder and Full Adder Trade Information

Supply Ability 5 Unit Per Week
Delivery Time 4-5 Days
Main Export Market(s) Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Central America, Asia, Africa
Main Domestic Market Manipur, Lakshadweep, Himachal Pradesh, Nagaland, Uttarakhand, Daman and Diu, Dadra and Nagar Haveli, , South India, East India, West India, Andaman and Nicobar Islands, Assam, Arunachal Pradesh, Bihar, Chandigarh, Delhi, Goa, Jammu and Kashmir, Jharkhand, Karnataka, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Punjab, Pondicherry, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, West Bengal, Gujarat, Haryana, North India, Andhra Pradesh, Kerala, Central India, Odisha, Chhattisgarh, Uttar Pradesh, All India

Product Description

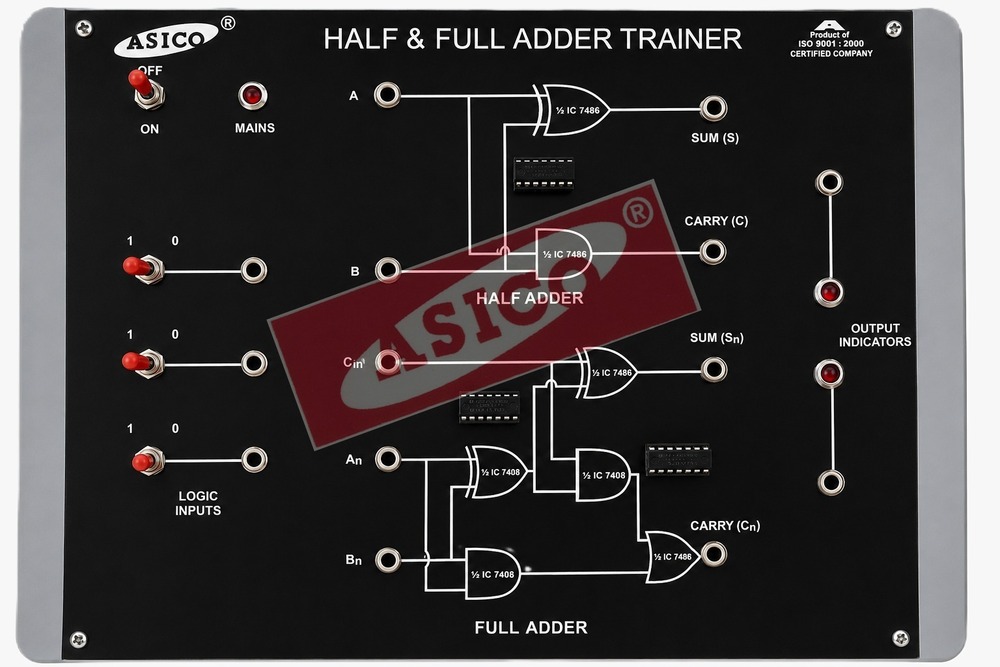

Digital Trainer to verify Half Adder & Full Adder

Objective: Half & Full Digital Adders has been designed to verify the truth table for Digital Half Adder & Full Adder.

Features: Fixed output DC regulated Power supply of 5V. Two 'EX-OR' Gates, IC no.7486 are mounted inside the cabinet & connections brought out on sockets.Two 'AND' Gates, IC no.7408 are mounted inside the cabinet & connections brought out on sockets.One 'OR' Gate, IC no.7432 is mounted inside the cabinet & connections brought out on sockets.Three Logic inputs, logic "0" & logic "1" selectable using SPDT switches.Two output indicators are mounted on the front panel to observe the output status.

Versatile Logic Circuit Trainer

Engineered for verifying Half Adder and Full Adder operations, this trainer is an essential tool for digital logic education. The labelled ergonomic layout simplifies the learning process, and the discrete IC-based implementation enables students and professionals to observe genuine logic behaviors. Its application in laboratories and training centers promotes a hands-on approach to understanding digital circuits.

Comprehensive Testing and Observation

Equipped with tactile input switches, multiple logic test points, and an LED-based display, users can conveniently enter logical values and visually monitor circuit outputs. The inclusion of a prototyping breadboard area encourages the customization and testing of additional circuits. External devices are easily connected via banana socket terminals, expanding experiment possibilities.

Reliable and Safe Performance

Operating directly from a main AC supply, the trainer includes fused protection against overcurrent and accidental shorts, ensuring safety during experimentation. Its high logical accuracy, standard TTL voltage output, and rugged ABS plastic enclosure reflect robust engineering, making it suitable for frequent, intensive use in academic and professional environments.

FAQs of Digital Trainer to verify Half Adder and Full Adder:

Q: How do I perform logic experiments using the Digital Trainer for Half Adder and Full Adder verification?

A: You can perform experiments by inputting logical values via tactile push-to-on switches, observing outputs on the LED display, and using the breadboard area for custom circuit additions. The banana socket terminals allow integration with other equipment for extensive testing.

Q: What features enhance the accuracy and safety of digital circuit experiments with this trainer?

A: This trainer employs discrete ICs for high logical accuracy and uses fused protection to safeguard against overcurrent and accidental short circuits, ensuring reliable and safe operation throughout all laboratory procedures.

Q: When is it suitable to use this Digital Trainer in an educational setting?

A: It is ideal for use in practical digital logic sessions, lab experiments, training courses, and internal assessments in schools, colleges, and technical institutions, anytime detailed verification of Half Adder and Full Adder logic is required.

Q: Where can I observe the logic waveforms and outputs during an experiment on this trainer?

A: Logic waveforms can be observed at the multiple test points provided on the trainer using standard lab instruments, while the output states are immediately visible through integrated LED indicators on the panel.

Q: What is the process for verifying custom logic circuits with this trainer?

A: You can design and prototype custom logic circuits on the onboard breadboard section, connect relevant inputs and outputs using the patch cords and banana sockets, and verify results via the LEDs and test points.

Q: How does using this trainer benefit learning and experimentation in digital electronics?

A: It offers hands-on experience, immediate visual feedback, robust safety features, and a practical prototyping area, empowering learners to understand digital logic circuits thoroughly and confidently validate real-world logic operations.

Q: Is the Digital Trainer portable and easy to use in various laboratory environments?

A: Yes, its compact, tabletop design with an ergonomic labelled layout and lightweight construction (approx. 1.2 kg) makes it easy to move and set up in different lab or training settings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number
